Identify your Maptuner model

There are two types of Maptuner Nano; the NX3A and NB3A. The main difference is that the NB3A has a protruding connector that plugs straight into the diagnostics port of a BRP (Can-Am/Sea-doo/Ski-doo) vehicle. The NX3A on the other hand has a recessed connector that plugs into a model specific cable.

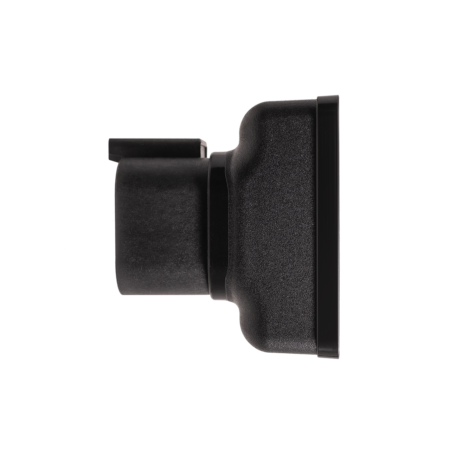

This is side profile of NB3A. The back of it features a square male connector. This Maptuner plugs straight into the diagnostics port of BRP-vehicles. You don’t need an additional cable.

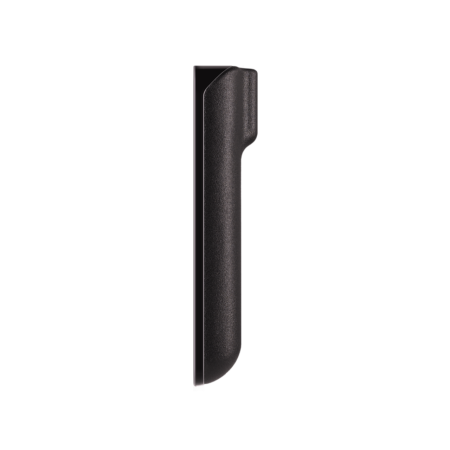

This is side profile of NX3A. It’s thin and has a recessed female connector on top. You need a cable to connect this Maptuner to your vehicle. Make sure you have the right cable before you continue.

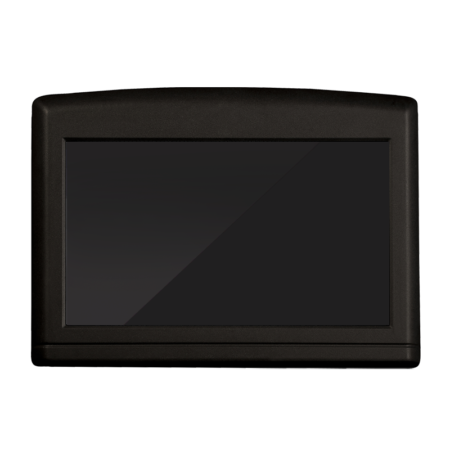

This is the front of the Maptuner X (also known as Maptuner). It has a large display on the front and two recessed female connector at the bottom. One for the USB-cable and the other one for a vehicle specific cable. You need a cable to connect this Maptuner to your vehicle. Make sure you have the right cable before you continue.

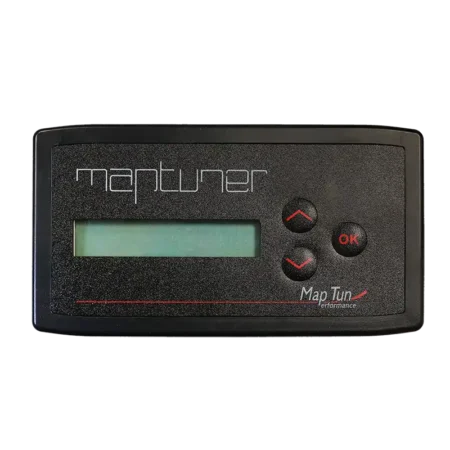

The original Maptuner is an older and larger unit that features the old Maptun/Maptuner logo, has three buttons and a small monochrome display.
